The APBX 10 DS, a 10 subwoofer loaded in a 12-litre sealed enclosure, is the flagship. It is dedicated to the highest-performing Prima systems, using the AP1 D amplifier for the sub-section. The speaker's mechanical excursion of more than 18 mm provides for incredible authority, while the refined Thiele & Small parameters set-up provides the ideal balance for all music genres.
- Ultra-low profile (5.6 in. / 142 mm) box with a sealed design perfectly tuned to fully exploit the APS 10 D driver.
- 2 Sides/2 Sounds: design provides the ability to choose between
Down-Firing mounting to increase the low-frequency extension and
Up-Firing installation to obtain more punch and definition.
- Leveling feet with velcro inserts included for a secure grip on the carpet while maintaining easy removal.

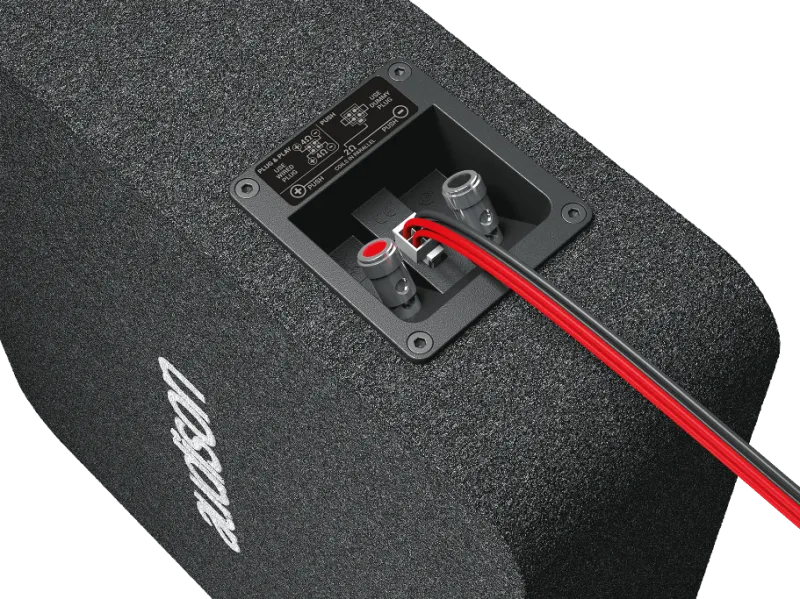

- SSP (Sub Smart Plug) features both traditional push contacts and a
Plug-&-Play terminal block to easily configure the impedance as
required and provides a quick release.
- Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
6 Special designed cone-dustcap-basket geometry which guarantees a
long linear excursion capability (11 mm, one-way).
- Massive driver motor assembly, optimized with FEM (Finite Element
Modeling) for perfect control under high excursion conditions.
- Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
- Specifically developed to be combined with either the AP8.9 bit
(2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D
(2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
- A sturdy metal grid is included for the total protection of the subwoofer driver.
|Power Handling - Peak||800 W|
|Power Handling - Continuous||400 W|
|Magnet Material||HIGH-DENSITY FLUX FERRITE|
|Cone Material||WATER-REPELLENT PRESSED PAPER|
Read more here.
|Dimension A||470 mm|
|Dimension B||334 mm|
|Dimension C||120 mm|
- Unit Type: Enclosure | Loaded
- Watts RMS: 251 - 500W
- Enclosure Type: Sealed
- Voice Coil x Impedance | Ω: 2 x 4Ω
- Brand: AUDISON
- Size: 250mm | 10"
