The impossible takes a little longer – from the very first idea in 2011 until the sales start at the end of 2018 the all-new BRAX DSP went through the longest and most intensive development process in the history of Audiotec Fischer. Desperately awaited from many customers all over the world we proudly present the most advanced digital signal processor which is – without any doubt – redefining both sound quality and functionality. It is not only the first DSP on the market which deserves to bear the famous BRAX logo but it also elevates the performance standard to an unrivalled level.
Audiotec Fischer didn't spare any effort to carry every single detail of this technological masterpiece to extremes.

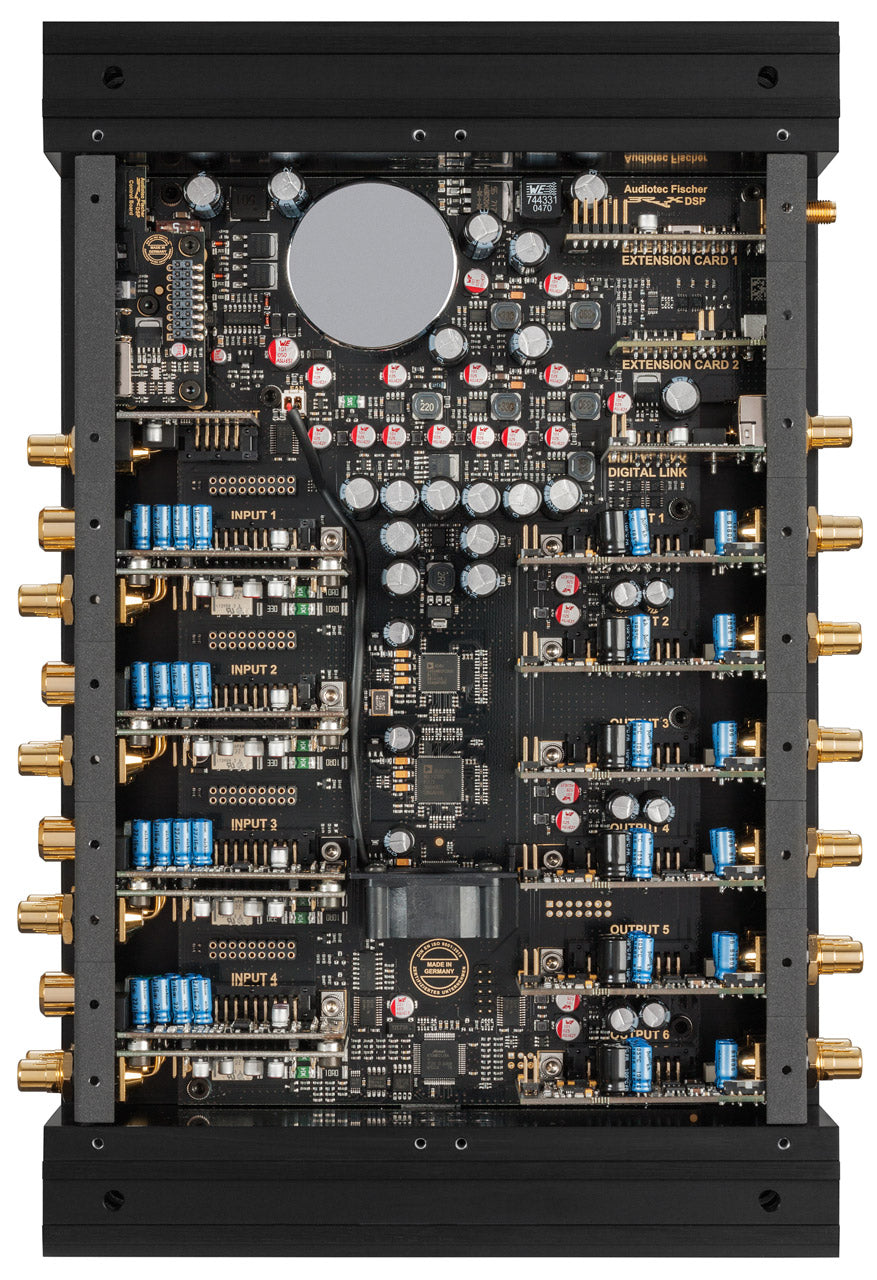

The "heart" consists of no less than three (3!) of the most advanced Sigma350 series fixed-point 64 Bit audio DSP's with the incredible processing power of 3.6 billion MAC operations per second. This allows running the whole system on a native 192 kHz sampling rate, extending the audio frequency range to 80 kHz. The signal conversion is handled by the best sounding A/D and D/A converters from Asahi Kasei with specifications beyond imagination.
Enormous care has been taken for the design of the power supply which is the essential foundation for perfect sound quality. A host of fifty-five voltage regulators cleans and stabilizes all the supply voltages for every single stage separately. A new high-performance 32 Bit CoProcessor (ACO) supervises every operation and assures the fastest communication with the DSP PC-Tool software and the optional remote control DIRECTOR.
But besides all its technical merits, the BRAX DSP marks the beginning of a new era in terms of connectivity as well. Its unique modular concept allows configuring the inputs and outputs either as analog, digital or a mix of it. It is hard to conceive that with this flexibility the BRAX DSP won't be able to support any kind of system configuration, neither today nor in the future. The “total work of art” is completed by a mechanical concept that gives the impression of immortality at first glance.
Again, the enormous expenditure – from the massive heatsink in BRAX typical straight-lined design to the cinch jacks milled from the solid – is discernible down to the most minute detail.
|Inputs||Up to 8 x RCA / Cinch + 8 x highlevel speaker input
up to 4 x stereo SPDIF in optical / coaxial
1 x Optical SPDIF (12 - 96 kHz)
1 x Coaxial SPDIF (12 - 192 kHz)
1 x Remote In
1 x Remote control input
|Input sensitivity||RCA / Cinch 1 - 8 Volts
Highlevel 3.5 - 30 Volts

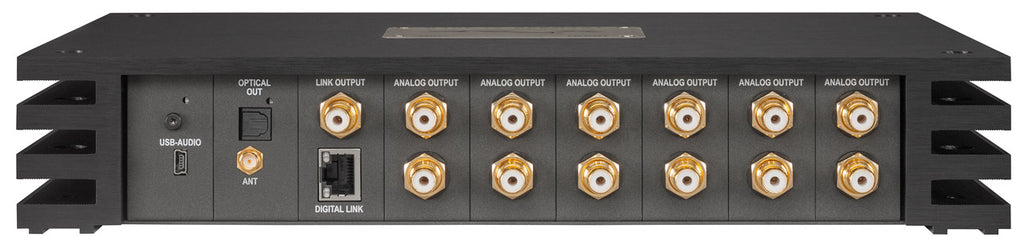

|Outputs||Up to 12 x RCA / Cinch
up to 6 x stereo SPDIF out optical / coaxial (48 / 96 / 192 kHz)
1 x Remote Out
1x SPDIF Link
|Output voltage||2 / 4 / 8 Volt RMS adjustable|
|Frequency response||5 Hz - 80,000 Hz|
|DSP resolution||64 Bit|
|DSP power||3 x 295 MHz (3.6 Mrd. MAC operations/sec|
|Sampling rate||192 kHz|
|DSP type||3 x Audio signal processor|
|Signal converters||A/D: Asahi Kasei AK5572EN 32 Bit
D/A: Asahi Kasei AK4490EQ 32 Bit
|Signal-to-noise ratio digital input||122 dB (A-weighted)|
|Signal-to-noise ratio analog input||116 dB (A-weighted)|
|Total harmonic distortion (THD+N) digital input||< 0.0004 %|
|Total harmonic distortion (THD+N) analog input||< 0.0006 %|
|IM distortion (IMD) digital input||< 0.0013 %|
|IM distortion (IMD) analog input||< 0.002 %|
|Crosstalk||> 110 dB (1 kHz)|
|Operating voltage||10.5 - 16 Volt (max. 5 sec. down to 6 Volts)|
|Current draw||2400 mA|
|Max. remote output current||500 mA|
|Additional features||Modular input / output concept, 2 x BEC Slot, ground lift switch, 32 Bit CoProcessor, control Input, ADEP.3 circuitry, Auto remote switch, DiSAC volume control in combination with BRAX MATRIX MX4 PRO|
|Dimensions (H x W x D)||310 x 200 x 56 mm /
12.21 x 7.87 x 2.21"
Scope of delivery
1 x USB cable
2 x Allen key
1 x Instruction manual
- RCA Input: 8x RCA in and more
- RCA Output: 8x RCA out and more
- High-Level Input: 8 Channel and more
- High-Level Input Voltage: Over 20V
- Brand: BRAX
