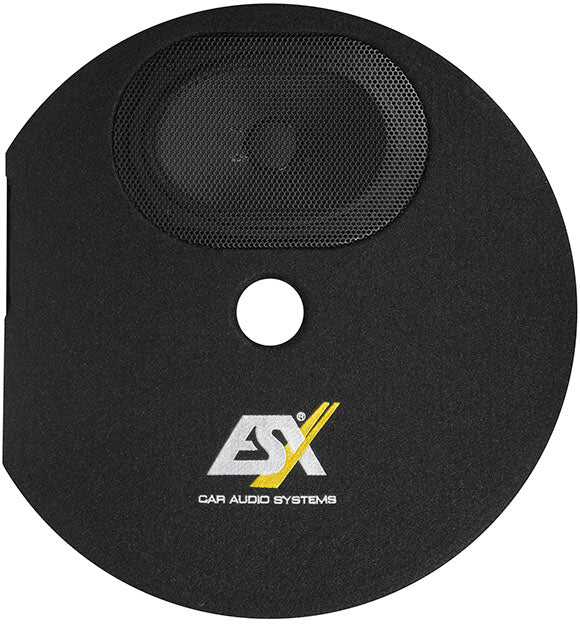

The popular ESX Q300A spare wheel system has now been extended with the DBX300Q by a passive variant - ideal for amplifiers, which provide about 200 watts RMS at 4 ohms. With the newly developed subwoofer with double voice coil, great basses are produced and thanks to the low height of only 15 cm, the subwoofer system in all major vehicles space.
Besides the conventional connection sockets, where the 2 + 2 ohms output can also be wired to a single 4 or even 1 ohms output, the box also has the new and innovative QUICK CONNECT terminal, which enables a plug&play connection with each amplifier via a 4 -fold Molex socket. This requires special QC subwoofer cables, available in 4 different lengths.
15 x 23 cm (6 x 9”) Bassreflex System
for the Spare Wheel Recess
Power Rating 200/400 Watt RMS/max.
Impedance 2 + 2 Ohms
Laterally located bass reflex port
Subwoofer with scooped paper cone
Subwoofer protection grille
QUICK CONNECT Terminal
Dimensions: Ø 50 x 15 cm
- Unit Type: Enclosure | Loaded
- Unit Type: Spare Wheel
- Watts RMS: 151 - 250W
- Enclosure Type: Vented
- Voice Coil x Impedance | Ω: 2 x 2Ω
- Brand: ESX
- Size: 6 x 9"
