QUANTUM QE subwoofers impress with their very compact design. The QE622 subwoofer is almost daintily, but with its aluminum die-cast basket, the dual magnet driver with 2 x 40 oz and the sewn bead, he signals: “Caution, it can become very loud!” The slightly larger subs have a powerful 2 x 63 oz double magnet and just like the QE622 a pole core drilling and also a ventilated T-Plate for optimal cooling. The QE622 has a large 2 “(50 mm) voice coil with an RMS Power Rating of 250 Watts and the QE822 as well as the brand new QE1022 carry a 2.5” (64 mm) voice coil with a power rating of 400 and 600 Watts RMS. Extremely long-wound voice coils of 30 or 36 mm winding height allow a linear stroke of +/- 10 mm. Both woofers have a dual voice coil with 2 + 2 ohms each. This can be used to configure impedances of 1 x 4 Ohm or even 1 x 1 Ohm. Without problems, several subwoofers can also be operated in series on an amplifier.
- Sturdy Aluminum Basket
- 64 mm Dual Voice Coil
- Voice Coil with 36 mm winding height
- Dual Magnet Driver with 126 oz. (3,6 kg)
- Vented Magnet Driver
- Double Stitched Surrounds
- Scooped Paper Cones
- X-Max. +/- 18 mm

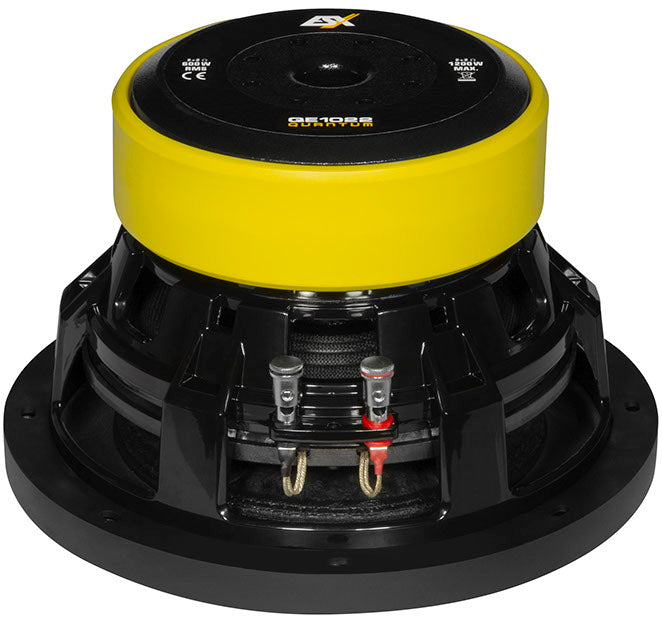

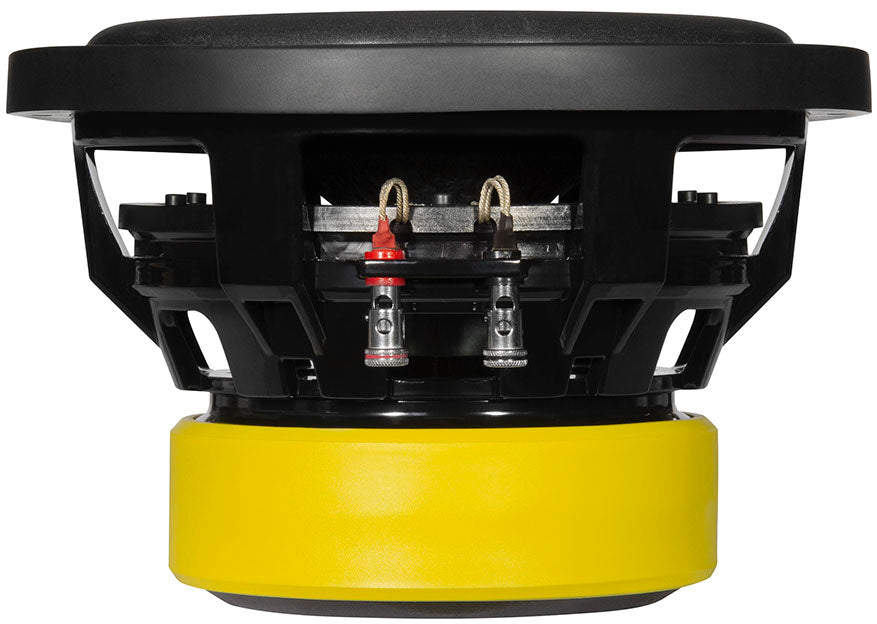

25 cm (10”) Compact Subwoofer
Power Rating 600/1200 Watts RMS/max.
Impedance 2 + 2 Ohms
64 mm Dual Voice Coil
126 oz (3,6 kg) Dual Magnet Driver
Installation Depth 155 mm
Installation Opening: 234 mm
- Unit Type: Single Driver
- Watts RMS: 501 - 1000W
- Voice Coil x Impedance | Ω: 2 x 2Ω
- Installation Depth: 151 - 180mm
- EBP: 75 - 100 (sealed+vented)
- Brand: ESX
- Size: 250mm | 10"
